Products
Your partner for customized photovoltaic solutions.
Innovative and competent.
Areas of Application:
-
Quarry Ponds
-
Industrial Fish Ponds
-
Lakes of former mines
-
Sewage Treatment Plants
-
Reservoirs
Benefits:
-
High yield due to bifacial PV modules
-
Higher efficiency due to cooling effect
-
Yield from unused area
-
Grid-friendly generation profile
-
High environmental compatibility

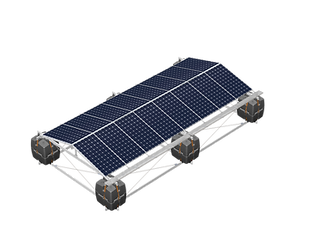

Dimension Unit Block:
6,08 m (L) x 11,15 m (W) x 1,70 m (D)
Number of PV Modules / Unit Block:
16
Installed Power / Unit Block:
10,88 kWp
Max. Wave Height:
2,5 m

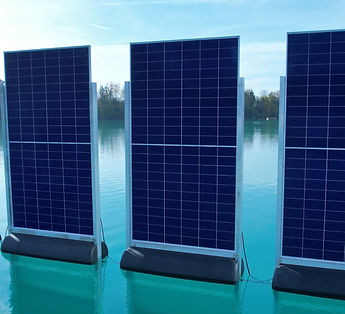

Float
Areas of Application:
-
Quarry Ponds
-
Lakes of former mines
-
Harbors
-
Lagoons
Benefits:
-
High Yield due to bifacial PV modules
-
Folding of the structure under high wind loads
-
Low surface sealing
-
Very grid-friendly generation profile
-
High storm and snow resistance
Dimension / Segment:
3,5 m (H) x 1,5 m (B) x 0,6 m (T)
Number of PV Modules / Segment:
1
Installed Power / PV Module:
700 Wp
Installed Power / Meter:
350 Wp/m
Bifacial PV module with an output of up to 700 W.
A flexible cable connection allows the PV module to deflect around the horizontal axis of rotation under wind load
Floats made of food-grade material. Structural components made of cost-effective and weather-resistant aluminium profiles
Restoring weight for vertical alignment pf the PV module in unloaded
Qualitative yield over the course of the day
Areas of Application:
-
Docks
-
Lagoons
-
Bodies of water with significant fluctuating water levels
-
Moderate maritime environments
Benefits:
-
High yield due to bifacial PV modules
-
Modular and scalable
-
Higher efficiency due to cooling effect
-
Yield from unused area
-
Grid-friendly generation profile
-
High environmental compatibility
Dimension Unit Block:
11,18 m (L) x 6,08 m (W) x 2,9 m (D)
Number of PV Modules (680 Wp) / Unit Block:
16
Installed Power / Unit Block:
10,88 kWp
Max. Wave Height:
8,5 m
Areas of Application:
-
Oceans
-
High Seas
-
Supply of remote islands
-
Aquafarming
Benefits:
-
Modular and scalable
-
Designed for harsh maritime environments
-
High yield due to bifacial PV modules
-
Higher efficiency due to cooling effect
-
Hybrid: a combination of solar-, wind- and wave-generating elements possible
-
Heavy Duty Platform as an add-on possible
Dimension Unit Block:
12 m (L) x 12 m (W) x 6 m (D)
Number of PVModules (680 Wp) / Unit Block:
50
Installed Power / Unit Block:
32,8 kWp
Max. Wave Height:
20 m
Conveyor Belt PV-System
Einsatzbereiche:
-
Conveyor Belts
Vorteile:
-
Use of the existing substructure
-
Procedure-free construction enables immediate implementation
-
Direct feed-in at the conveyor belts without power losses
-
Protection against weather influences
Length / Segment:
4,5 m
Number of modules / Segment:
8
Nominal power / PV Module
455 Wp
Nominal power per conveyor belt PV segment:
3.640 Wp
Land
Areas of application:
-
Agrivoltaics
-
Open Spaces PV
-
Water protection areas
-
Former Landfills
Advantages:
-
Folding of the structure in case of high wind loads
-
No surface sealing, no impalement
-
High storm and snow resistance
-
High yield due to bifacial PV modules
-
Very grid-friendly generation profile
-
temprary installation possible
Dimension / Segment:
3,5 m (H) x 1,5 m (W) x 1,4 m (D)
Number of PV Modules / Segment; Weight / Segment:
1, ca. 200 kg
Installed Power / PV Module
700 Wp
Installed Power / Meter:
350 Wp/m
Qualitative yield over the course of the day
